Blue Sky
| Main particulars |
| Flag | LIBERIA |
| Call Sign | A8TK7 |
| Year Built | 2009 |
| Shipyard | SUMITOMO HEAVY INDUSTRIES, JAPAN |
| Hull Number | 1347 |
| Classification | AMERICAN BUREAU OF SHIPPING |
| Class Notation | +A1, OIL CARRIER, circle E, +AMS, +ACCU, VE, SH, SHIM, ESP, UWILD, CRC, RW ACCU, VEC, ESP, UWILD |
| IMO Number | 9413016 |
| Gross Tonnage | 55863 |
| Net Tonnage | 29818 |
| Length overall | 228,60 M |
| Length between perpendiculars | 217,80 M |
| Breadth moulded | 42,00 M |
| Depth | 21,50 M |
| Draft summer (sw) | 14,81 M |
| Deadweight at summer draft (sw) | 105491 MT |
| Service speed (in ballast) | 14,80 KNOTS |
| Service speed (laden) | 14,00 KNOTS |
| Fuel Oil consumption (main eng) at full power/speed |
44,60 MT/DAY |
| Cruising range | 14.900 Miles |
| |
| Main Machinery |
| Main engine: | MAN B&W 6S60MC-C MCR 12350kW AT 97 RPM NCR 11120kW AT 93,7 RPM |
| Auxiliary engines: | DAIHATSU 6DK-20 3X1000KVA |
| Emergency generator | CUMMINS 6CTA8.3D 188KW |
| Oil fired boiler: | AALBORG MISSION OL 2X25000 KG/HR |
| |
| Cargo Pumps |
| Cargo Pumps | STEAM TURBINE DRIVEN SHINKO KV400 3X2500M3/HR, 135 M T.H |
| Stripping pumps: | STEAM DRIVEN SHINKO KPH150 1X150M3/HR |
| Stripping eductor: | NIIKURA KOGYO FCD-ER-N 600 M3/HR |
| Ballast pumps: | ELECTRIC DRIVEN SHINKO 2X2000M3/HR |
| Ballast eductor: | NIIKURA KOGYO FC-ER 285 M3/HR |
| |
| Deck Machinery |
| (type and brake holding capacity) |
| Windlass-mooring winch: | HYDRAULIC WINCH NIPPON PUSNES J-19CU 2X338kN AT 9M/MIN |
| Mooring winch forward: | HYDRAULIC WINCH NIPPON PUSNES NS200HW 2X147kN AT 12M/MIN |
| Mooring winch mid deck: | HYDRAULIC WINCH NIPPON PUSNES NS160HW 3X147kN AT 12M/MIN |
| Mooring winch aft: | HYDRAULIC WINCH NIPPON PUSNES NS160HW 3X147kN AT 12M/MIN |
| |
| Cargo Oil Tanks |
| Compartment | 100% cub.metres | 98%cub.metres |
| No.1 COT (center) | 18063,40 | 17702,10 |
| No.2 COT (center) | 20659,60 | 20246,40 |
| No.3 COT (center) | 20659,60 | 20246,40 |
| No.4 COT (center) | 20659,60 | 20246,40 |
| No.5 COT (center) | 20659,60 | 20246,40 |
| Residue tank | 940,70 | 921,90 |
| Slop tank (port and strb) | 15418,10 | 15109,70 |
| TOTAL | 117060,60 | 114719,30 |
| |
| Other Tanks |
| Compartment | 100% cub.metres | 98%cub.metres |
| Fuel tanks | 2518,30 | 2417,50 |
| Diesel Oil tanks | 248,30 | 238,40 |
| Lubricating oil tanks | 142,10 | 136,30 |
| Fresh water tanks | 106,10 | 104,00 |
| Drinking water tanks | 199,60 | 195,60 |
| Ballast water tanks | 37201,70 | 36457,67 |
| Various other tanks | 128,40 | 125,80 |

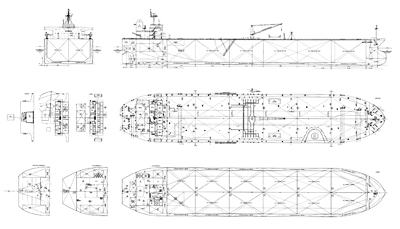

| General Arrangement |
|
|
 |
